Gear Shaper Cutters
The role of Gear Shaper Cutters
Gear shaper cutters are precision cutting tools used in gear manufacturing. Shaper gear cutting is responsible for shaping the teeth on the gears, allowing for a precise fit, which therefore allows machinery to run smoothly and efficiently.
At Dathan Tools, we are the market leaders in the production of gear shaper cutters engineered for high performance and consistent results across internal and external applications. Our cutters are available in a variety of profiles, sizes and materials to suit a wide range of industries, including aerospace, automotive, power generation, construction, agriculture and oil & gas. We manufacture all gear shaper cutters with quality materials and advanced technology, delivering superior finishes and reliable accuracy. Our expert team is on hand, ready to help you select the right tooling solution for you.
Types of Gear Shaper Cutters
Gear shaper cutters are manufactured in different types and are all designed to play a different role.
Our capabilities include the manufacture of these types of gear shaped cutters:

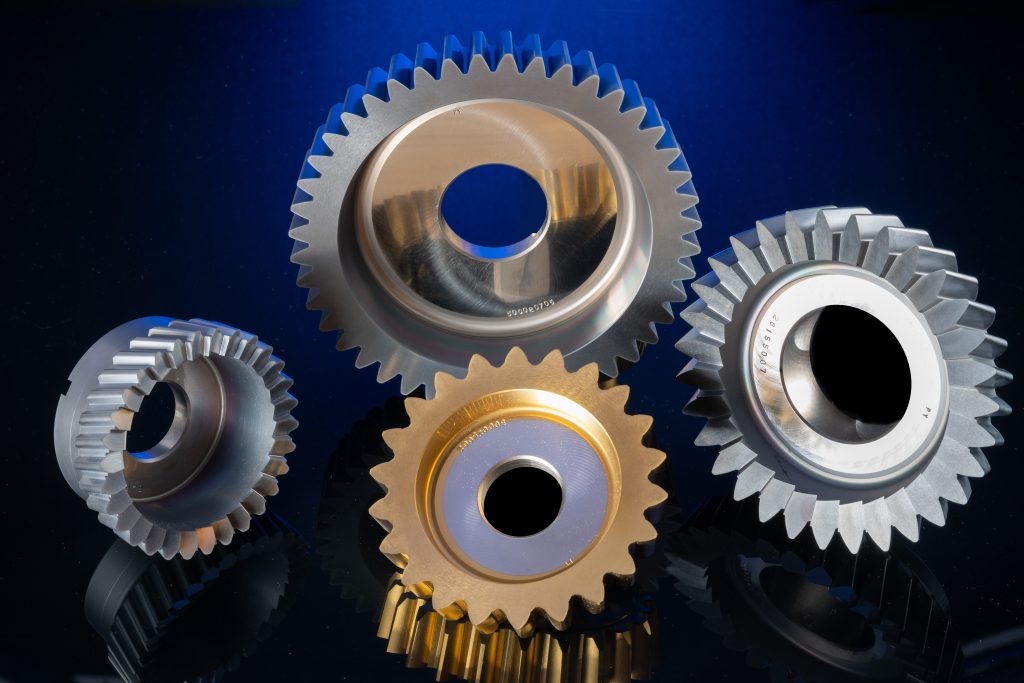

Dathan disc type cutters can be designed and produced for cutting any type of gear – internal or external, spur or helical.
They can also be designed to cut splines, serrations, sprockets or other involute forms. The cutters are full form generated using the Dathan ‘pass thro’ method.
These cutters may be manufactured with bore diameters from 10mm to 120mm or 0.5″ up to 4″ and cutter diameters (pitch circle diameter) from 19mm (.75″) to 350mm (13.75″).
We can make gear shaper cutters to comply with any world standard or to meet any specified requirement.
These are primarily designed for cutting internal gears, splines and serrations, both spur and helical. But they may also be designed for externals, if required.
Shank type gear shaper cutters are full form generated however small the pitch circle diameter (PCD), although the strength of the cutter produced is the limiting factor.
The strength and rigidity of shank type cutters is greatly improved by the Dathan ribbing method and is especially advised for those of small PCD.
Dathan hub type cutters are designed for cutting internal components where maximum rigidity is required. They are recommended for cutting long face widths or for coarse pitches.
In general terms, any tooth form, face width or number of teeth that is available on a shank cutter can be manufactured with a hub type fitting.
Note: these cutters screw directly onto the spindle of the machine, therefore rely on the spindle being in a good true state.
Helical gear shaper cutters are mainly manufactured to customers specific requirements, especially in the form of single helical cutters, which are extensively used in the manufacture of automotive gear boxes.
Single helical gear shaper cutters may also be designed for use in a thread or worm generating machine for the production of single or multi-start worms. These are usually cone sharpened.
Double helical cutters are used in matched pairs and are sharpened with their cutting edges ground parallel to the axis. These tools are used for cutting continuous double helical gears, which are used in the transmission of high loads in gear pumps and similar applications.
The extended back boss type cutter is designed to avoid the problems associated with obstructions on the work piece preventing full working movement.
This type of tool has the advantage that the clamping nut does not project below the cutting face. This is necessary where interference by web flange or fixture on the workpiece would prevent the use of a disc cutter.
Gear Shaper Cutter Applications
Gear shaper cutters are used across industries where precision matters the most. They give precision and reliability in machinery across demanding industries. The cutting action makes them effective for manufacturing internal gears, where other cutting methods my be limited. They also deliver accurate tooth profiles and consistency for producing external gears such as splines, serrations and keyways.
The Automotive Industry – Gear shaper cutters are used for parts that require high precision and durability
The Aerospace Industry – They support the manufacture of complex gears used in heavy machinery, power transmissions and specialist mechanical assembles.
The versatility and precision of gear shaper cutters makes them an essential tool for gear manufacturers looking for reliable, high-performance gear cutting solutions.
The Future of Gear Shaping
The future of gear shaping is being driven by increasing demand for precision, efficiency and durability in automotive, aerospace and advanced engineering sectors. As systems become more complex and expectations rise, high-quality gear shaper cutters continue to play a crucial role in delivering longer tool life. At Dathan tools, we continue to invest in innovation, technical expertise and advanced technologies to ensure our gear shaper cutters meet the demand of modern gear manufacturing. With a combination of knowledge and continuous improvements, we support customers with high-quality tooling solutions designed for the future of gear production.
Our Quality and Standards
At Dathan, quality and precision is at the heart of everything we do. Our gear shaper cutters are manufactured, sharpened and inspected to exacting standards ensuring top performance and reliability. Every stage of our process is carefully controlled to meet the demand of modern gear manufacturing.
With our directors, sales team and production specialists all under one roof, we maintain clear communication, fast turnaround and complete quality control. This approach allows us to respond quickly and provide expert guidance to ensure all our tools meet the highest standards.
If you have any questions about any of our products please get in touch via the contact form or contact details below.
